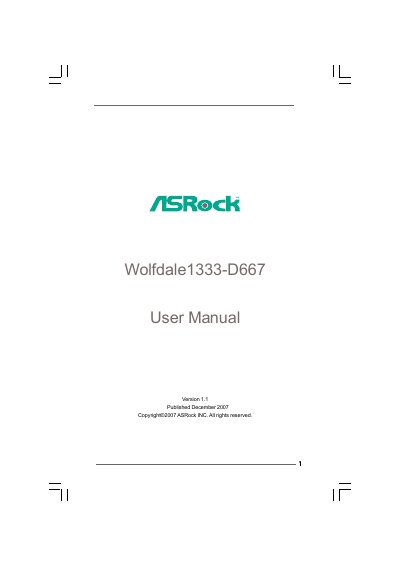

This document is the user manual for ASRock INC.'s 11111 Wolfdale1333-D667, published in December 2007. It is copyrighted by ASRock INC. The manual provides specifications and information about the product, as well as ASRock's disclaimer.
This manual introduces the ASRock Wolfdale1333-D667 Micro‑ATX motherboard, describing its layout, supported CPUs, memory, and expansion options. It includes step‑by‑step hardware installation instructions, BIOS configuration guidance, and details on the support CD utilities.
Additional sections cover safety cautions, overclocking warnings, and software support, including driver installation and operating system compatibility. The document ends with BIOS setup screens, security password configuration, and contact information for technical support.
| Form Factor | Micro ATX (9.6 in × 8.7 in) |
|---|---|
| CPU Socket | LGA 775 for Intel Dual Core, Core 2 Duo, Pentium Dual Core, Celeron |
| Chipset | Northbridge Intel 945GC A2, Southbridge Intel ICH7 |
| Expansion Slots | 1 × PCI Express x16, 1 × PCI Express x1, 2 × PCI |
| SATA Connectors | 4 × SATAII 3.0 Gb/s connectors |
| Audio | 5.1‑channel HD Audio (Realtek ALC660VD) |
| LAN | Realtek 10/100 Ethernet (PCIE x1 LAN 8101E) |
It uses an LGA 775 socket that supports Intel Dual Core, Core 2 Duo, Pentium Dual Core, and Celeron processors.
There are four SATAII 3.0 Gb/s connectors on the board.
It is a Micro ATX board measuring 9.6 inches by 8.7 inches.
