Introduce the features and characteristics of the ASRock Wolfdale1333-D667 motherboard.

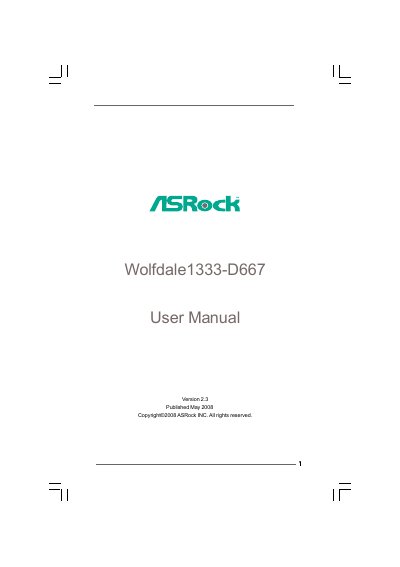

This manual introduces the ASRock Wolfdale1333-D667 motherboard, a Micro ATX board supporting Intel LGA 775 Dual‑Core Wolfdale CPUs, DDR2 memory, and a range of expansion slots. It includes safety notices, warranty disclaimer, and regulatory compliance information.
The guide covers hardware installation (CPU, heatsink, memory, SATA, PCI/PCI‑Express), BIOS setup utility, and software support including driver and utility installation from the support CD. Detailed specifications, connector layouts, and troubleshooting tips are also provided.
| Form Factor | Micro ATX (9.6" x 8.7") |
|---|---|
| CPU Socket | LGA 775 for Intel Dual‑Core Wolfdale processors |
| Chipset | Northbridge Intel 945GC A2, Southbridge Intel ICH7 |
| Expansion Slots | 1 PCI‑Express x16, 1 PCI‑Express x1, 2 PCI |
| Audio | Realtek ALC662 5.1‑channel HD Audio |
| LAN | Realtek PCIe x1 10/100 Ethernet, Wake‑On‑LAN |
| SATA Connectors | 4 SATAII 3.0 Gb/s connectors |
| BIOS | 4 MB AMI BIOS, version 2.3 |
The motherboard provides four SATAII 3.0 Gb/s connectors.
The board can handle up to 4 GB of DDR2 memory.
It supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
