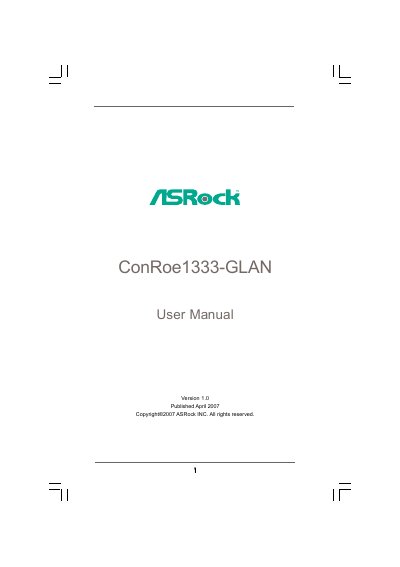

ASRock ConRoe1333-GLAN Motherboard User Manual

ConRoe1333-GLAN User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 42
File format: PDF
File size: 371 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: CONROE1333-GLAN
MD5 checksum: D044523712E657AB639E834BC64039A8
PDF: ASRock ConRoe1333-GLAN Motherboard User Manual PDF

About this manual

This manual introduces the ASRock ConRoe1333-GLAN motherboard, covering its package contents, specifications, and key features. It is intended for system integrators and end‑users who need to install and configure the board safely.

The document is organized into sections on hardware installation (CPU, memory, expansion slots, connectors), BIOS Setup Utility, and software support including driver installation from the support CD. It also contains safety cautions, FCC/CE compliance information, and troubleshooting tips.

What's inside

Introduction
Package Contents
Specifications
Installation
BIOS Setup Utility
Software Support
Motherboard Layout
Boot Screen
Security Screen
Exit Screen

Specifications

Form Factor	ATX (12.0 in x 7.5 in)
CPU Socket	LGA 775
Chipset	Northbridge Intel 945GC A2, Southbridge Intel ICH7
Memory	Dual‑Channel DDRII, 2 DIMM slots, max 4 GB
SATAII Connectors	4 x SATAII 3.0 Gb/s
LAN	Gigabit LAN (Realtek RTL8111B)

Frequently asked questions

What operating systems are supported by this motherboard?

The board supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.

How many SATAII connectors does the ConRoe1333-GLAN have?

It provides four SATAII 3.0 Gb/s connectors.

What is the maximum memory capacity supported?

The motherboard can accommodate up to 4 GB of DDRII memory.
