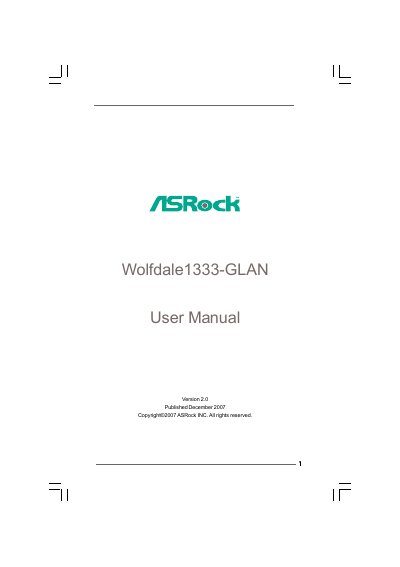

This document is the user manual for ASRock INC.'s 11111 Wolfdale1333-GLAN motherboard, describing the features and characteristics of the product.
This manual introduces the ASRock Wolfdale1333-GLAN ATX motherboard, its package contents, key specifications, and hardware layout. It guides users through installation of the CPU, memory, expansion cards, and connectors, and explains the BIOS setup utility.
The later sections cover software support, including the support CD, driver installation, and utilities, as well as security settings and boot configuration. The document also lists minimum hardware requirements for Windows Vista Premium and provides safety cautions for over‑clocking and battery handling.
| Form Factor | ATX 12.0‑in x 7.5‑in (30.5 cm x 19.1 cm) |
|---|---|
| CPU Socket | LGA 775 for Intel® Dual Core, Core2 Duo, Pentium® Dual Core, Celeron® |
| Chipset | Northbridge Intel® 945GC A2, Southbridge Intel® ICH7 |
| Memory Type | Dual‑Channel DDR2, 2 DIMM slots, max 4 GB |
| Maximum Memory Capacity | 4 GB |
| Expansion Slots | 1 × PCI‑Express x16, 2 × PCI‑Express x1, 3 × PCI |
| LAN | Realtek RTL8111C Gigabit LAN (10/100/1000 Mb/s) |
| Supported Operating Systems | Windows 2000, XP, XP 64‑bit, Vista, Vista 64‑bit |
It supports Microsoft Windows 2000, Windows XP, Windows XP 64‑bit, Windows Vista, and Windows Vista 64‑bit.
It uses the ATX form factor measuring 12.0 in × 7.5 in (30.5 cm × 19.1 cm).
Yes, it features a Realtek RTL8111C Gigabit LAN controller supporting 10/100/1000 Mb/s.
