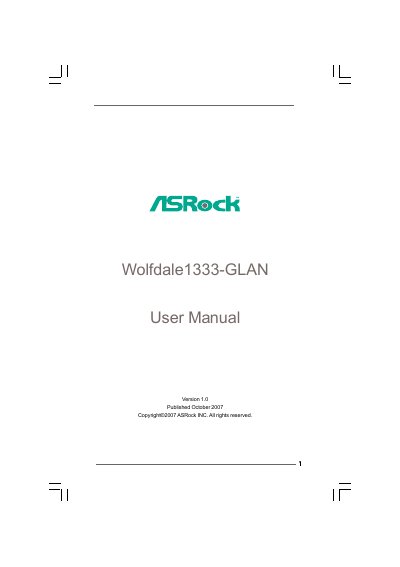

This manual covers the ASRock Wolfdale1333-GLAN ATX motherboard, including hardware specifications, installation steps for CPU, memory, and expansion cards, and detailed BIOS configuration guidance. It also includes safety notices, warranty disclaimer, and FCC compliance information.
Additional sections describe the support CD contents, driver installation, and troubleshooting tips, along with a quick reference for boot options, security settings, and power management.
| Form Factor | ATX (12.0‑in x 7.5‑in) |
|---|---|
| CPU Socket | LGA 775 for Intel Dual Core, Core 2 Duo, Pentium Dual Core, Celeron |
| Chipset | Intel 945GC A2 northbridge, Intel ICH7 southbridge |
| LAN | Realtek RTL8111C Gigabit Ethernet (10/100/1000 Mb/s) |
| Audio Codec | 5.1 CH Windows Vista Premium Level HD Audio (ALC662VD) |
| SATA Connectors | 4 x Serial ATAII 3.0 Gb/s connectors (no RAID, no Hot Plug) |
| BIOS | 4 Mb AMI BIOS, AMI Legal BIOS, ACPI 1.1 compliant |
It uses an LGA 775 socket that supports Intel Dual Core, Core 2 Duo, Pentium Dual Core, and Celeron processors.
The board provides four Serial ATAII 3.0 Gb/s connectors.
Yes, it features a Realtek RTL8111C Gigabit LAN controller supporting 10/100/1000 Mb/s.
It uses a 4 Mb AMI BIOS with AMI Legal BIOS and ACPI 1.1 compliance.
