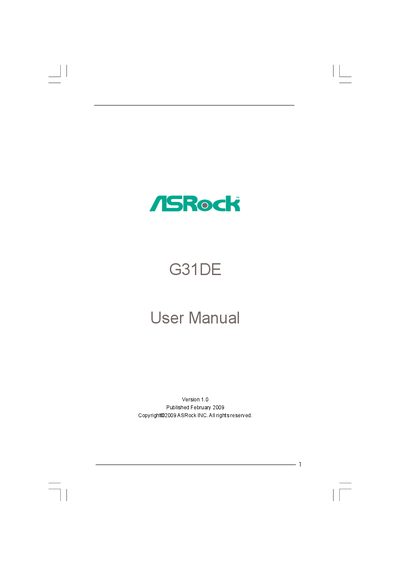

This manual introduces the functions and usage methods of the G31DE motherboard.
This manual covers everything needed to install and configure the ASRock G31DE motherboard, including package contents, hardware layout, CPU and memory installation, and BIOS setup. It also details the support CD utilities and driver installation procedures.
Additional sections describe the motherboard’s technical specifications, connector pin‑outs, and safety warnings such as over‑clocking cautions. The document ends with software support instructions for Windows operating systems.
| Form Factor | ATX 12.0-in x 7.5-in |
|---|---|
| CPU Socket | LGA 775 |
| Northbridge Chipset | Intel® G31 |
| Southbridge Chipset | Intel® ICH7 |
| Memory Slots | 2 x DDR2 DIMM |
| Maximum Memory Capacity | 8 GB |
| Expansion Slots | 1× PCI‑Express x16, 2× PCI‑Express x1, 3× PCI |
| Graphics | Intel® GMA 3100 |
| Audio Codec | Realtek ALC662 |
| LAN | Realtek RTL8111DL Gigabit |
| SATA Connectors | 4 × SATAII 3.0 Gb/s |
| BIOS | 4 Mb AMI BIOS |
The motherboard supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.
The rear I/O panel provides four USB 2.0 ports.
The board can support up to 8 GB of DDR2 memory.
It uses an LGA 775 socket for Intel Core 2, Pentium Dual Core, Celeron Dual Core, and compatible CPUs.
