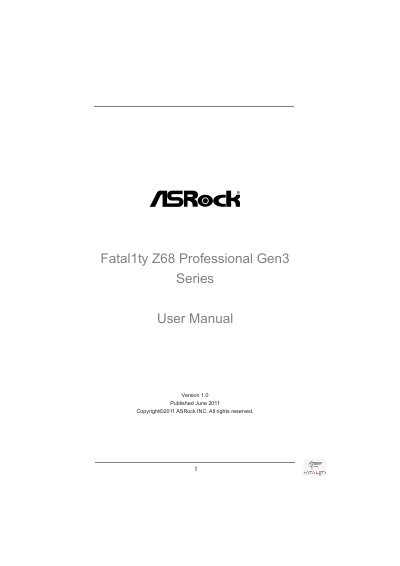

This document is the user manual for the Fatal1ty Z68 Professional Gen3 Series, providing instructions and features of the product.
This manual introduces the ASRock Fatal1ty Z68 Professional Gen3 Series motherboard, lists the package contents, and details the hardware specifications such as CPU, memory, and expansion slots. It guides users through physical installation, connector wiring, and optional features like SLI, CrossFireX, and dual‑monitor setups.
The document also covers the UEFI BIOS configuration, including advanced settings for storage, power, and security, and provides step‑by‑step procedures for installing Windows operating systems, including special instructions for HDDs larger than 2 TB and driver installation via the support CD or ASRock website.
| Form Factor | ATX (12.0" x 9.6") |
|---|---|
| CPU Support | 2nd Generation Intel® Core™ i7 / i5 / i3 (LGA1155) |
| Memory Slots | 4 x DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| USB 3.0 Ports (Rear) | 4 x ports, up to 5 Gb/s |
