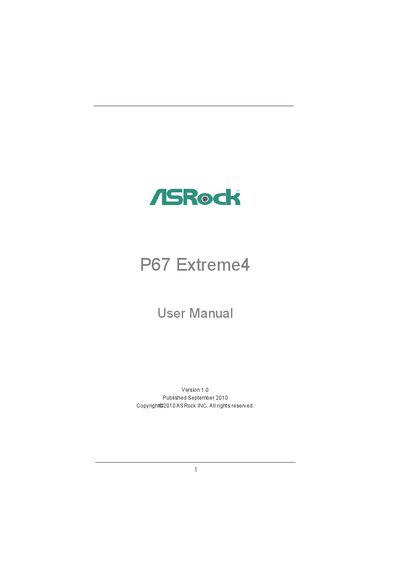

p67 extreme4 user manual, provide product usage instructions
This manual introduces the ASRock P67 Extreme4 motherboard, lists the package contents, and details the board layout, I/O panel, and key specifications. It guides users through hardware installation, including CPU, memory, storage, and expansion slots, and explains the various BIOS/UEFI configuration options.
The document also covers software support, such as driver installation, utility programs like Extreme Tuning Utility and Instant Flash, and provides instructions for installing supported Windows operating systems and configuring security settings.
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Support | 2nd Generation Intel Core i7/i5/i3 LGA1155 |
| Chipset | Intel P67 |
| Memory Slots | 4 x DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| SATA3 Ports | 2 x 6.0 Gb/s connectors (RAID supported) |
| USB 3.0 Ports | 2 x Rear USB 3.0 ports |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| BIOS | 64 Mb AMI BIOS with UEFI GUI |
It provides two SATA3 6.0 Gb/s connectors that support RAID, NCQ, AHCI and Hot Plug functions.
The board can handle up to 32 GB of DDR3 memory.
It supports Windows 7/7 64‑bit, Vista/Vista 64‑bit, and Windows XP/XP 64‑bit, with or without RAID functions.
