This document introduces the features and performance of the ASRock P67 Extreme4 motherboard, including support for 2nd generation Intel Core i7/i5/i3 processors, advanced V8+2 power phase design, support for Hyper-Threading technology, and support for dual-channel DDR3 memory technology.

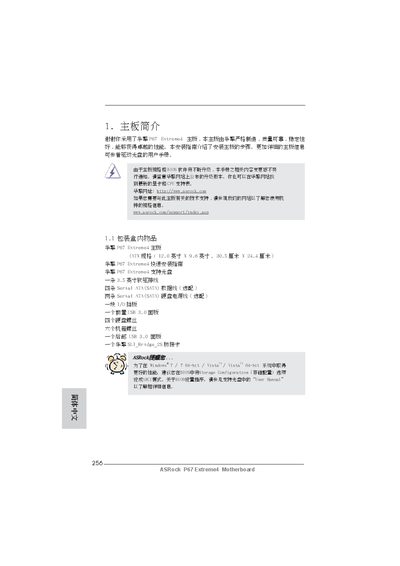

This manual introduces the ASRock P67 Extreme4 ATX motherboard, its features, and the required accessories included in the box. It also explains how to obtain the latest BIOS and driver updates from the ASRock website.
Detailed sections cover CPU and memory installation, BIOS configuration, SATA and USB connections, and troubleshooting tips such as LED debug codes and safety precautions during assembly. This manual is written in Chinese.
| Form factor | ATX (12.0" x 9.6") |
|---|---|
| CPU socket | LGA1155 |
| Chipset | Intel P67 |
| Memory slots | 4 x DDR3 DIMM |
| Maximum memory | 32 GB |
| PCI Express x16 slots | 3 |
| eSATA3 ports | 1 |
| LAN controller | Realtek RTL8111E Gigabit |
| Audio codec | Realtek ALC892 |
It uses an LGA1155 socket for second‑generation Intel Core i7/i5/i3 processors.
Set the SATA mode to AHCI in the BIOS for optimal performance with Windows 7.
The motherboard supports up to 32 GB of DDR3 memory.
