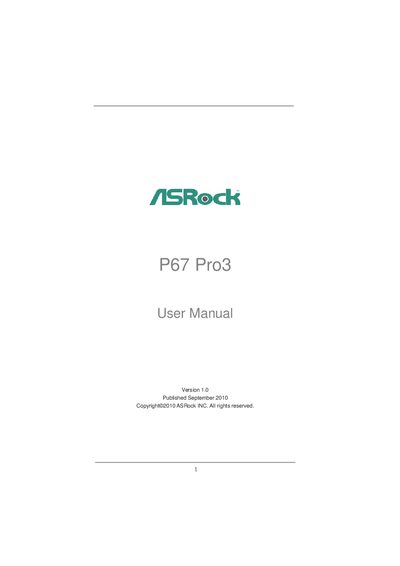

ASRock P67 Pro3 Motherboard User Manual

This document is the user manual for ASRock P67 Pro3 motherboard, describing the features and characteristics of the motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 64
File format: PDF
File size: 761 KB
Published: 15 March, 2012
Updated: 29 September, 2023
Model: P67
MD5 checksum: 662CF256A849C102F2A95D6CCB44CD99
PDF: ASRock P67 Pro3 Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASRock P67 Pro3 ATX motherboard, including package contents, hardware layout, and step‑by‑step installation of CPU, memory, storage, and peripherals. It also explains the UEFI BIOS setup utility, security options, and how to use the bundled support CD utilities.

Additional sections describe supported operating systems, driver installation, and advanced features such as overclocking utilities, Smart Switches, and large‑disk installation procedures. The document ends with troubleshooting tips and contact information for technical support.

What's inside

Introduction
Specifications
Motherboard Layout
Installation
UEFI Setup Utility
Software Support
Security
Large HDD Installation

Specifications

Form Factor	ATX (12.0‑in x 9.6‑in)
CPU Support	2nd Generation Intel Core i7/i5/i3 (LGA1155)

Frequently asked questions

Which Windows operating systems are supported?

The motherboard supports Windows 7/7 64‑bit, Windows Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.

How do I enable AHCI mode for a hard drive larger than 2 TB?

Enter the UEFI Setup Utility, go to Advanced → Storage Configuration, and set SATA Mode to AHCI before installing the OS.

What is the maximum memory capacity?

The motherboard can accommodate up to 32 GB of DDR3 memory.
