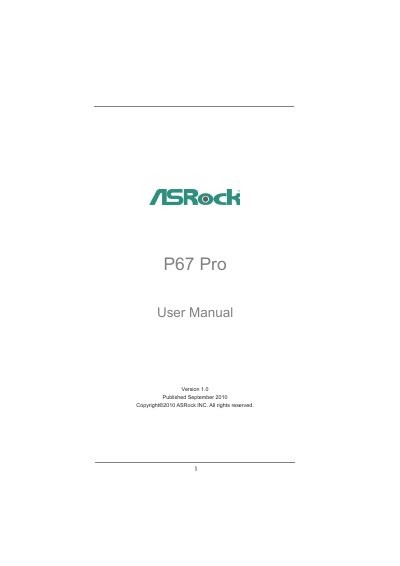

P67 Pro User Manual, introduce the features and characteristics of P67 Pro, including technical specifications, function introduction, usage instructions, installation instructions, troubleshooting, etc.
This manual covers the complete hardware installation process for the ASRock P67 Pro motherboard, including CPU, memory, storage, and peripheral connections. It also explains the UEFI BIOS configuration, security settings, and software utilities supplied on the support CD.
Additional sections describe overclocking guidelines, power‑saving features such as EuP compliance, and troubleshooting tips. The document includes specifications, connector pin‑outs, and contact information for technical support. This manual is written in Chinese.
| Form Factor | ATX (12.0‑in x 8.0‑in) |
|---|---|
| CPU Support | 2nd Generation Intel Core i7/i5/i3 LGA1155 |
| Chipset | Intel P67 |
| Audio Codec | Realtek ALC892, 7.1‑channel HD Audio |
| SATA3 Connectors | 2 x 6.0 Gb/s |
The motherboard provides two SATA3 6.0 Gb/s connectors.
ASRock Instant Flash lets you update the BIOS directly from the UEFI setup utility.
Set the SATA mode to AHCI in the Storage Configuration screen.
