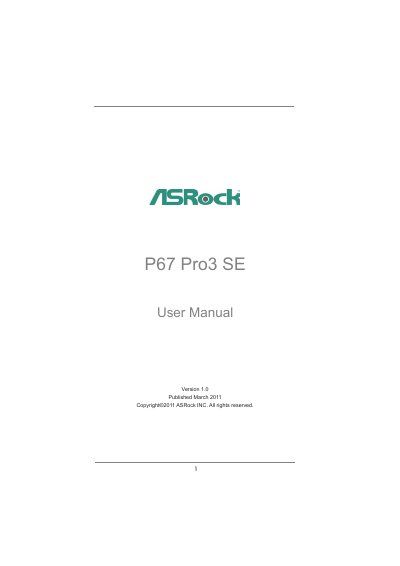

This manual introduces the functions and features of the P67 Pro3 SE motherboard.
This manual introduces the ASRock P67 Pro3 SE motherboard, covering package contents, detailed specifications, layout diagrams, and I/O panel description. It also explains the supported CPUs, memory types, expansion slots, and unique features such as AIWI and SmartView.
The guide walks you through hardware installation, including CPU, memory, storage, and peripheral connections, followed by UEFI BIOS setup, security settings, and software support via the included support CD. Troubleshooting tips and safety cautions are included throughout. This manual is written in Chinese.
| Form Factor | ATX 12.0-in x 7.5-in |
|---|---|
| Chipset | Intel P67 |
| Memory Slots | 4 x DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| Expansion Slots | 2 x PCI Express 2.0 x16, 2 x PCI Express 2.0 x1 |
| LAN | Atheros AR8151 Gigabit Ethernet |
| USB Ports | 2 x USB 3.0, 6 x USB 2.0 (rear), 3 x USB 2.0 headers |
| SATA Connectors | 2 x SATA3 6 Gb/s, 4 x SATA2 3 Gb/s |
| BIOS | 64 Mb AMI BIOS with UEFI GUI |
It uses an ATX form factor measuring 12.0 in × 7.5 in.
The motherboard includes two USB 3.0 ports.
The board can support up to 32 GB of DDR3 memory.
It is based on the Intel P67 chipset.
