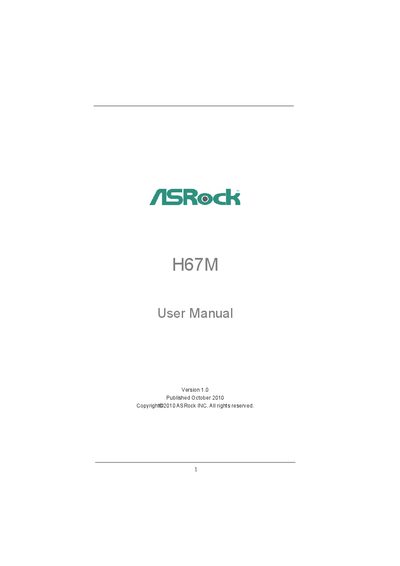

This H67M user manual provides detailed information about the product, including specifications, features, and usage instructions.
This manual covers everything needed to set up the ASRock H67M motherboard, from unpacking the package contents to installing the CPU, memory, and storage devices. It also explains how to configure the UEFI BIOS, enable RAID, and use the support CD utilities.
Additional sections detail the board’s hardware features such as the integrated graphics, LAN, USB ports, and power connectors, as well as guidance for installing Windows operating systems, including large‑capacity (>2 TB) drives.
| Form Factor | Micro ATX (9.6" x 8.6") |
|---|---|
| CPU Socket | LGA1155 |
| Chipset | Intel H67 |
| Memory Slots | 2 DDR3 DIMM slots |
| Maximum Memory | 16 GB |
| Graphics Interface | Intel HD Graphics 2000/3000, DVI‑D, HDMI, VGA |
| LAN | Gigabit Ethernet (Realtek RTL8111E) |
| USB Ports | 4× USB 2.0 (rear) + 2× USB 3.0 (rear) |
| BIOS | 64 Mb AMI UEFI BIOS |
The board supports Windows 7/7 64‑bit, Vista 64‑bit, Windows XP/XP 64‑bit, with or without RAID functions.
It supports dual‑channel DDR3 non‑ECC un‑buffered modules at 1333 MHz or 1066 MHz, up to a total of 16 GB.
