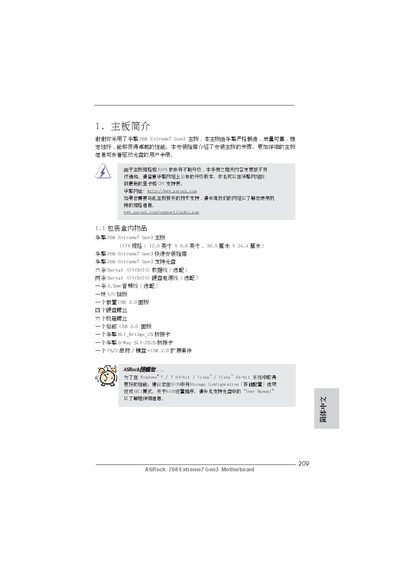

This is the manual for ASRock Z68 Extreme7 Gen3 motherboard, which introduces the motherboard's specifications, features and installation methods.
The ASRock Z68 Extreme7 Gen3 is an ATX‑form factor motherboard that supports 2nd‑generation Intel Core i5/i7 processors (LGA1155) and features the Intel Z68 chipset. It provides dual‑channel DDR3 memory support, multiple PCI‑Express slots, SATA3, USB 3.0, Gigabit LAN and integrated graphics.
This guide covers unpacking, hardware installation, jumper settings, BIOS configuration, driver CD contents and environmental compliance information. It also includes troubleshooting notes and details on ASRock utilities such as Instant Flash and XFast USB. This manual is written in Chinese.
| Form factor | ATX (12.0" x 9.6") |
|---|---|
| Memory type | DDR3, dual‑channel |
| PCI‑Express slots | 5 × PCIe x16 (various configurations) |
| USB 3.0 ports | 4 rear USB 3.0 ports (ASMedia ASM1042) |
| Audio codec | Realtek ALC892 |
It uses the ATX form factor measuring 12.0 inches by 9.6 inches.
The motherboard has four rear USB 3.0 ports.
