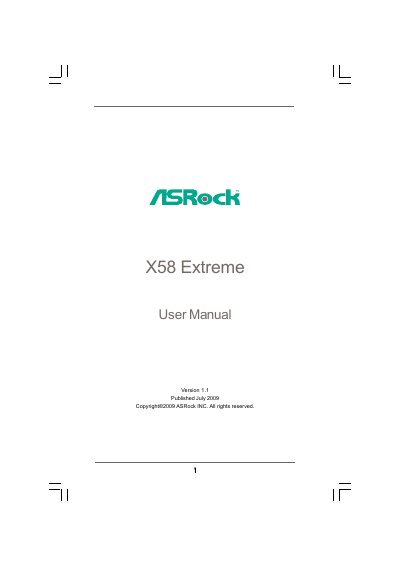

X58 Extreme User Manual
This manual introduces the ASRock X58 Extreme motherboard and guides users through hardware installation, BIOS configuration, and software support. It includes safety notices, warranty information, and references to the support CD and online resources.
Key sections cover package contents, detailed installation steps for CPU, memory, and expansion cards, BIOS setup utility with overclocking options, I/O panel description, SATA and USB configurations, and troubleshooting tips. The document also lists supported graphics cards, provides a quick start guide, and explains how to use ASRock utilities such as Instant Flash and OC Tuner.
| Form Factor | ATX 12.0-in x 9.6-in (30.5 cm x 24.4 cm) |
|---|---|
| CPU Socket | Intel Socket 1366 |
| Memory Slots | 6 DDR3 DIMM slots |
| Maximum Memory Capacity | 24 GB |
| PCI Express Slots | 3 x PCI Express 2.0 x16 slots |
| SATA Ports | 6 x SATAII 3.0 Gb/s connectors (RAID supported) |
| USB Ports | 7 x USB 2.0 ports |
| LAN | Gigabit LAN (Realtek RTL8111DL) |
The X58 Extreme motherboard provides six DDR3 DIMM slots for memory modules.
It uses the Intel Socket 1366 for compatible processors.
Yes, the board supports Hot Plug and Hot Swap functions for SATA and SATAII hard drives.
