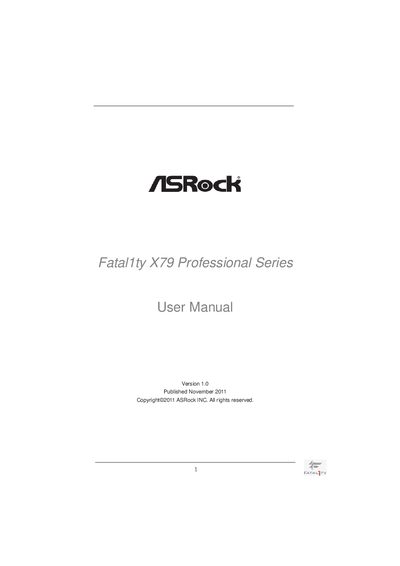

Fatal1ty X79 Professional Series User Manual is the user manual of ASRock Fatal1ty X79 Professional Series motherboard
This manual guides users through the setup and operation of the Fatal1ty X79 Professional Series motherboard, covering everything from unpacking the package to configuring the UEFI BIOS and installing supported operating systems. It also includes troubleshooting tips, driver installation steps, and detailed safety and warranty information.
The document contains a full specifications table, motherboard layout diagrams, I/O panel descriptions, and instructions for installing CPUs, memory, storage devices, and expansion cards. Additional sections cover advanced features such as SLI/CrossFireX, Smart Switches, and the ASRock XFast utilities, as well as software support and contact information for technical assistance.
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Support | Intel Core i7 processor family for LGA 2011 socket |
| Memory Slots | 4 x DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| Expansion Slots | 4 x PCI Express 3.0 x16 slots |
| Audio Codec | Realtek ALC898 |
| SATA3 Connectors | 6 x SATA3 6.0 Gb/s connectors |
| USB 3.0 Ports | 4 x Rear USB 3.0 ports |
| BIOS Type | 64 Mb AMI UEFI Legal BIOS with GUI support |
The motherboard supports Windows Vista 64‑bit (with SP1 or later) and Windows 7 64‑bit, as well as Windows XP 64‑bit versions.
There are six SATA3 6.0 Gb/s connectors on the board.
It is recommended to set the Storage Configuration option in the BIOS to AHCI mode.
The board provides four rear USB 3.0 ports and two front headers that support four additional USB 3.0 ports.
