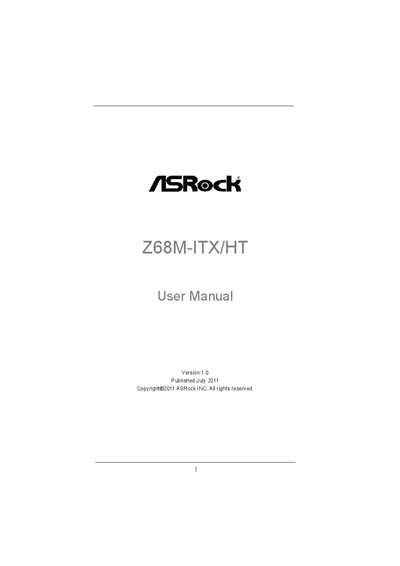

Z68M-ITX/HT User Manual
This manual guides users through unpacking, hardware installation, and configuration of the ASRock Z68M-ITX/HT Mini‑ITX motherboard. It includes detailed sections on CPU installation, memory modules, expansion slots, and peripheral connections.
Later chapters cover the UEFI BIOS utility, operating‑system installation procedures, and the contents of the Support CD, including drivers and utilities. Safety notices, FCC compliance, and warranty information are also provided.
| Form Factor | Mini‑ITX (6.7" x 6.7") |
|---|---|
| Chipset | Intel Z68 |
| Expansion Slot | 1 x PCI Express 2.0 x16 (blue) |
| Graphics Outputs | D‑Sub, DVI‑D, HDMI |
| LAN | Realtek RTL8111E Gigabit Ethernet |
| USB 3.0 Ports | 2 (ASMedia ASM1042) |
The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/ Vista 64‑bit, and Windows XP/XP 64‑bit.
There are two USB 3.0 ports provided by the ASMedia ASM1042 controller.
The board can accommodate up to 16 GB of DDR3 memory.
Yes, using the UEFI BIOS it can install Windows on drives larger than 2 TB by using GPT partitioning.
