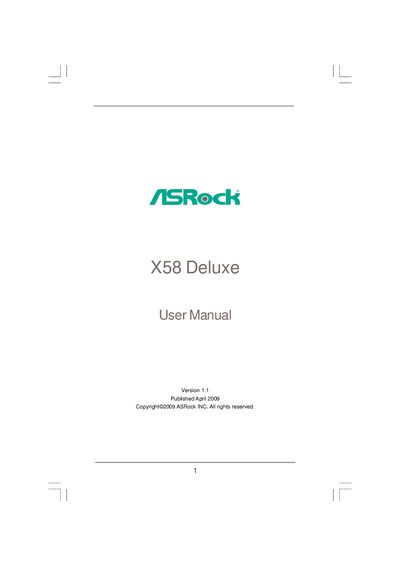

ASRock X58 Deluxe User Manual

X58 Deluxe User Manual

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 72
File format: PDF
File size: 1.3 MB
Published: 14 March, 2012
Updated: 30 September, 2023
Model: X58
MD5 checksum: C1DC5FF38507A56E7494323A2C5FA25F
PDF: ASRock X58 Deluxe User Manual PDF

About this manual

This manual introduces the ASRock X58 Deluxe motherboard, covering its features, package contents, and detailed specifications. It includes step‑by‑step installation instructions for the CPU, memory, expansion cards, and storage devices, as well as guidance on BIOS configuration and overclocking.

Later sections describe the BIOS Setup Utility, hardware health monitoring, software support, and troubleshooting. The document also lists supported graphics cards, SATA/RAID options, and provides contact information for technical support.

What's inside

Introduction
Installation Guide
BIOS Setup Utility
Hardware Specifications
I/O Panel
Expansion Slots
SATA and RAID Support
Overclocking Features
Software Support

Specifications

Form Factor	ATX (12.0" x 9.6")
CPU Socket	Intel Socket 1366
Chipset	Northbridge Intel X58, Southbridge Intel ICH10R
Expansion Slots	4 PCI‑Express 2.0 x16 slots, 3 PCI slots

Frequently asked questions

What CPU socket does the X58 Deluxe motherboard use?

It uses an Intel Socket 1366 for Core i7 and Xeon 3500 series processors.

Download PDF (1.3 MB)
