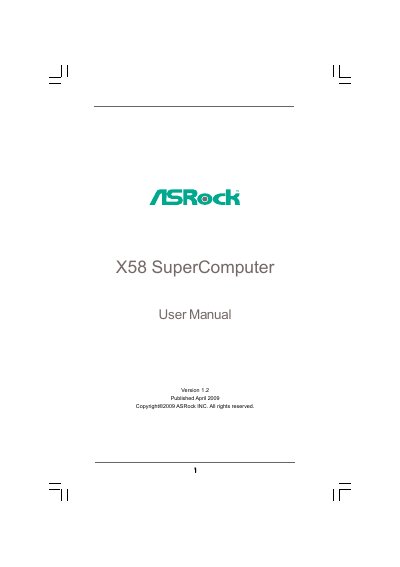

X58 SuperComputer User Manual, published in April 2009
This manual covers the ASRock X58 SuperComputer motherboard, an ATX‑form factor board featuring an Intel Socket 1366 CPU socket, X58 northbridge and ICH10R southbridge, and support for Intel® QuickPath Interconnect. It includes detailed installation steps for the CPU, memory, expansion cards, and storage devices, as well as guidance on BIOS configuration and overclocking features.
Additional sections describe supported graphics configurations (SLI, CrossFireX), audio and networking capabilities, and the contents of the support CD with drivers and utilities. Safety notices, warranty disclaimer, and regulatory compliance information are also provided.
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Socket | Intel Socket 1366 |
| Northbridge Chipset | Intel X58 |
| Southbridge Chipset | Intel ICH10R |
| Memory Slots | 6 x DDR3 DIMM slots |
| Maximum Memory | 24 GB |
| PCI‑Express Slots | 4 x PCIe 2.0 x16 |
| Audio | 7.1‑channel HD audio with ALC890 codec |
| LAN | Gigabit LAN (Realtek RTL8111DL) |
It uses an Intel Socket 1366 for compatible Core i7 and Xeon processors.
The motherboard provides six DDR3 DIMM slots.
The board can support up to 24 GB of system memory.
It features an Intel X58 northbridge and an Intel ICH10R southbridge.
