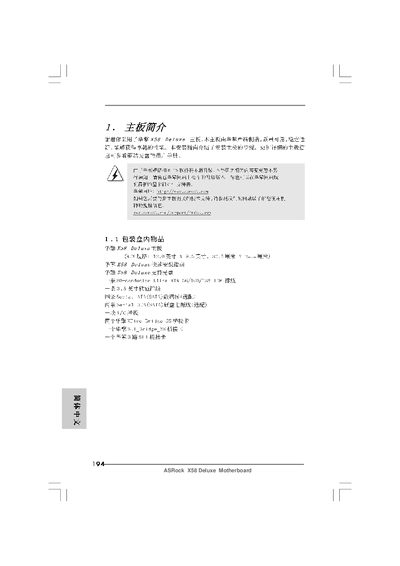

This is a product manual of ASRock X58 Deluxe Motherboard.
This guide provides step‑by‑step instructions for installing the ASRock X58 Deluxe motherboard. It includes safety precautions, CPU and heatsink mounting, and detailed wiring diagrams for power, SATA, USB, and front‑panel connectors.
The document also lists the board’s technical specifications such as ATX dimensions, supported Intel LGA 1366 processors, four DDR3 memory slots (up to 24 GB), PCI‑Express slots, integrated Realtek LAN, and audio codecs, helping users configure the system correctly. This manual is written in Chinese.
| CPU socket | Intel LGA 1366 |
|---|---|
| Supported CPUs | Intel Core i7, Xeon 3300 series |
| Memory slots | 4 DDR3 slots, up to 24 GB |
| Supported DDR3 speeds | 2000 MHz (OC) / 1866 MHz / 1600 MHz / 1333 MHz / 1066 MHz |
| PCI‑Express slots | 4 x PCI‑Express 2.0 x16 (x8/x16 or x8/x8 modes) |
| SATA ports | 4 SATA 3.0 Gb/s ports (RAID 0/1/5/10, Intel Matrix Storage) |
| LAN controller | Realtek RTL8111DL Gigabit Ethernet |
| Audio codec | Realtek ALC889 7.1‑channel HD audio |
It uses an Intel LGA 1366 socket for installing compatible CPUs.
The board has four DDR3 slots and supports up to 24 GB of memory.
A Realtek RTL8111DL Gigabit Ethernet controller is built in.
