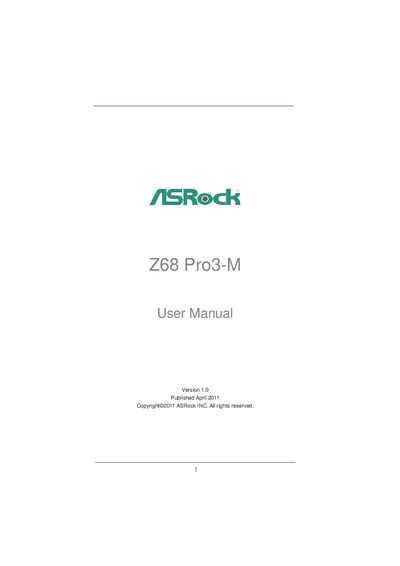

ASRock Z68 Pro3-M user manual, introduces the features and usage of the motherboard
This manual introduces the ASRock Z68 Pro3-M motherboard, covering package contents, hardware layout, and safety notices. It guides users through hardware installation, BIOS/UEFI setup, and operating system installation.
Key sections include detailed specifications, expansion slot information, I/O panel descriptions, BIOS features, and troubleshooting tips. The document also provides links to driver downloads and support resources on the ASRock website.
| Form Factor | Micro ATX (9.6‑in x 9.6‑in) |
|---|---|
| CPU Support | 2nd Generation Intel® Core™ i7 / i5 / i3 (LGA1155) |
| Chipset | Intel® Z68 |
| Memory Slots | 4 x DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| Expansion Slots | 1 × PCIe 2.0 x16, 2 × PCIe 2.0 x1, 1 × PCI |
| SATA3 Connectors | 2 × 6 Gb/s SATA3 ports |
| USB 3.0 Ports | 2 × USB 3.0 ports |
| LAN Controller | Realtek RTL8111E Gigabit Ethernet |
| Audio Codec | Realtek ALC892 |
| BIOS | 64 Mb AMI BIOS (UEFI) |
Use the UEFI BIOS, set the SATA mode to AHCI, select a UEFI boot option, and install Windows 7 64‑bit (or Vista 64‑bit) which will format the drive with GPT. Install the Microsoft hot‑fix KB979903 if needed.
The board needs a 24‑pin ATX power connector and an 8‑pin 12 V power connector.
It provides two USB 3.0 ports.
