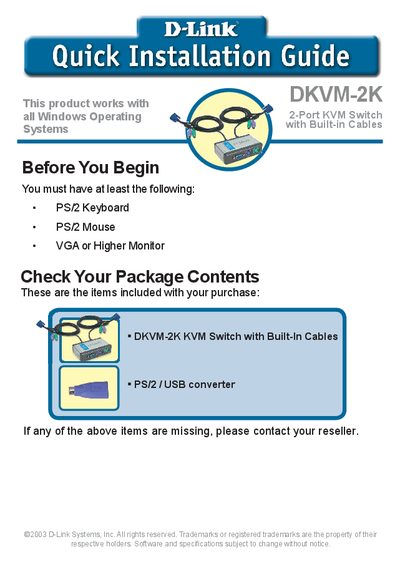

This manual introduces the D-Link DKVM-2K KVM switch, including the package contents, installation steps, and usage instructions.
The DKVM-2K is a 2‑Port KVM Switch with built‑in PS/2 keyboard, PS/2 mouse, and VGA cables, designed for use with Windows operating systems. This manual covers everything you need to set up the switch, switch between computers, and resolve common issues.
The guide includes step‑by‑step installation instructions, details on using the front‑panel Select button and Hot‑Key shortcuts, troubleshooting tips for keyboard, mouse, and video problems, and contact information for D‑Link technical support worldwide.
| Ports | 2‑Port KVM Switch |
|---|---|
| Cables | Built‑in PS/2 and VGA cables |
| Supported OS | All Windows Operating Systems |
| Keyboard Interface | PS/2 Keyboard |
| Mouse Interface | PS/2 Mouse |
| Video Interface | VGA (or higher) monitor |
Press the front‑panel Select button or use Hot‑Key mode: press Scroll Lock twice, then Scroll Lock + 1 for PC 1 or Scroll Lock + 2 for PC 2.
Enter Hot‑Key mode (Scroll Lock twice) and then press Scroll Lock + S to start Auto Scan, which switches computers every 10 seconds.
Make sure the keyboard is connected to the PS/2 keyboard port, test it directly on the computer, verify the keyboard IRQ is enabled in BIOS, and try a different keyboard if needed.
Unplug the mouse from the DKVM-2K for about 3 seconds, then reconnect it.
