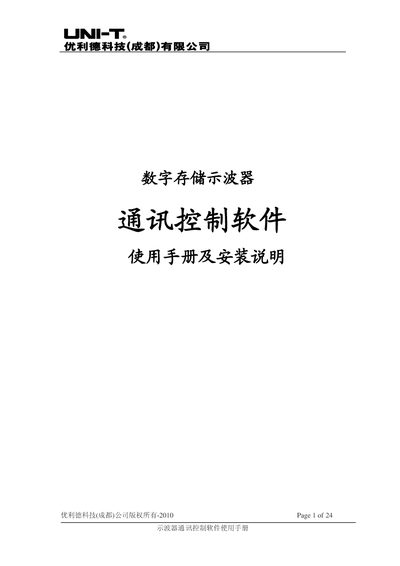

This document is the user manual for the oscilloscope communication control software of Unitech (Chengdu) Company. It introduces the installation steps, operation guide, system prompts, and troubleshooting of the digital storage oscilloscope communication control software.
The manual describes the hardware requirements for the UTD2000L oscilloscope control software, including a Windows 2000/XP/Vista PC with at least 128 MB of RAM, a VGA monitor and a USB/HOST interface. It also explains how to install the software from the supplied CD, copy the driver files to the computer, and run the installer.
After installation, the guide shows how to connect the oscilloscope via the USB port, configure the communication settings, and operate basic functions such as waveform capture. A troubleshooting section lists common error messages and recommended solutions. This manual is written in Chinese.
| Model | UTD2000L |
|---|---|
| Supported Operating Systems | Windows 2000, Windows XP, Vista (USB 2.0 only on Vista) |
| Minimum RAM | 128 MB |
| Display | VGA monitor |
| Interface | USB/HOST |
The software supports Windows 2000, Windows XP and Vista (Vista requires USB 2.0).
Insert the supplied CD, copy the driver files to the PC, then run the installer and follow the on‑screen prompts.
Connect the oscilloscope to the computer via the USB/HOST port after the software is installed.
A PC running Windows 2000/XP/Vista, at least 128 MB RAM, a VGA monitor and a USB/HOST interface.
