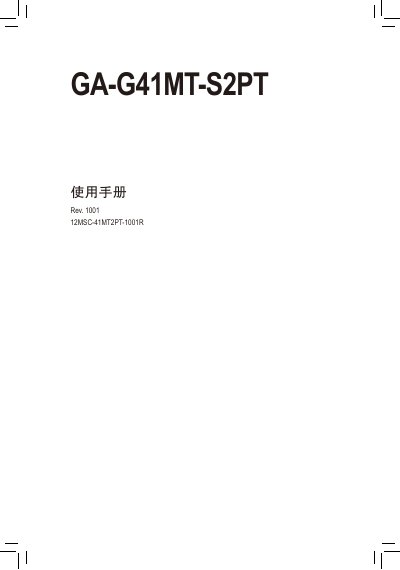

This user manual is about the GA-G41MT-S2PT model of Gigabyte motherboard, which introduces the hardware installation, BIOS program settings, and driver installation of the motherboard.
This manual provides step‑by‑step instructions for installing the GA‑G41MT‑S2PT motherboard, including CPU, memory, and expansion cards. It also details safety precautions, anti‑static handling, and connector wiring.
The document includes BIOS configuration options, driver installation guidance, and a full list of hardware specifications such as supported CPUs, memory types, storage interfaces, and integrated peripherals. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Chipset | Intel® G41 |
| Southbridge | Intel® ICH7 |
| Memory slots | 2 DDR3 DIMM slots, up to 8 GB |
| Memory speed | DDR3 1333/1066/800 MHz |
| USB ports | Up to 8 USB 2.0/1.1 ports |
| SATA ports | 4 SATA 3 Gb/s connectors |
| IDE port | 1 IDE (ATA‑100/66/33) connector |
| Network controller | Realtek RTL8111E 10/100/1000 Mbit |
| Audio codec | Realtek ALC887 / VIA VT1708 |
It uses an LGA775 socket for compatible Intel processors.
The board has two DDR3 DIMM slots that together support up to 8 GB of RAM.
It provides up to eight USB 2.0/1.1 ports.
A Realtek RTL8111E controller offering 10/100/1000 Mbit Ethernet.
