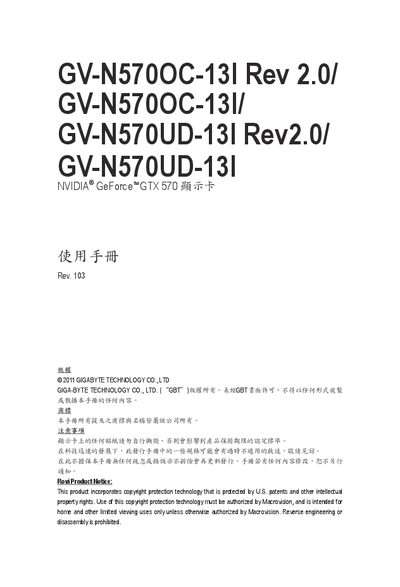

GV-N570OC-13I Rev 2.0/ GV-N570OC-13I/ GV-N570UD-13I Rev2.0/ GV-N570UD-13I NVIDIA ® GeForce TM GTX 570 User Manual, introduces the main features of the product, system requirements, hardware installation, driver installation, troubleshooting and other content.
This manual covers the hardware installation of the Gigabyte GV‑N570OC‑13I and GV‑N570UD‑13I graphics cards, including board layout, power‑connector requirements and connector pin‑outs. It also explains how to configure NVIDIA SLI, adjust BIOS settings and connect display outputs such as DVI‑I, HDMI and DisplayPort.
Technical specifications are listed, including PCI Express 2.0 interface, 1280 MB GDDR5 memory, DirectX 11 support and HDCP protection. Contact information for global technical support and service centers is provided at the end of the document. This manual is written in Chinese.
| Interface | PCI Express 2.0 |
|---|---|
| Memory | 1280 MB GDDR5 |
| Graphics API | DirectX 11 |
| SLI Support | NVIDIA SLI |
| Display Connectors (Rev 1) | 2 Dual‑Link DVI‑I, 1 mini HDMI |
| Display Connectors (Rev 2) | 2 DVI, 1 HDMI, 1 DisplayPort |
| HDCP | Supported |
You must connect both a 6‑pin and an 8‑pin PCI Express auxiliary power connector to the card.
Two 6‑pin PCI Express auxiliary power connectors are required.
Yes, the graphics card supports NVIDIA SLI technology.
The Rev 2.0 version provides 2 DVI ports, 1 HDMI port and 1 DisplayPort.
