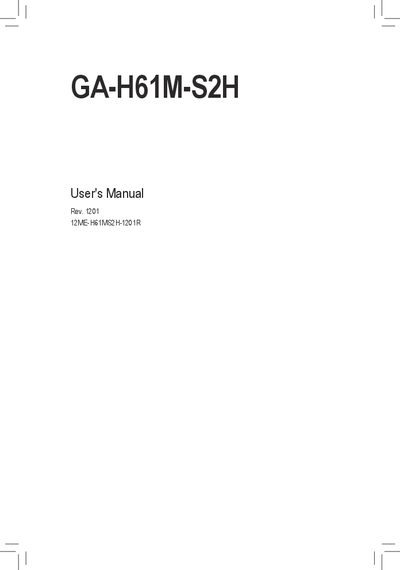

This document is the user manual for the GA-H61M-S2H motherboard, which describes the specifications and features of the motherboard, as well as the steps and precautions for hardware installation.
This manual guides users through safe hardware installation, BIOS setup, driver installation, and troubleshooting for the Gigabyte GA-H61M-S2H motherboard. It includes safety precautions, connector descriptions, and detailed specifications of the board's components.
Key sections cover hardware installation (CPU, memory, expansion cards), BIOS configuration (startup screen, advanced features, power management), and driver installation. Contact information and warranty details are provided at the end of the document.
| CPU socket | LGA1155 |
|---|---|
| Chipset | Intel H61 Express |
| Memory slots | 2 DDR3 DIMM sockets, up to 16 GB |
| Supported memory speeds | DDR3 1333/1066/800 MHz |
| Audio codec | VIA VT2021 |
| LAN controller | Atheros 8151 (10/100/1000 Mbit) |
| SATA connectors | 4× SATA 3 Gb/s |
| USB ports | Up to 8 USB 2.0/1.1 ports |
It uses an LGA1155 socket for Intel Core and Pentium/Celeron processors.
The board has two DDR3 DIMM slots that together support up to 16 GB of system memory.
An Atheros 8151 chip providing 10/100/1000 Mbit Ethernet connectivity.
