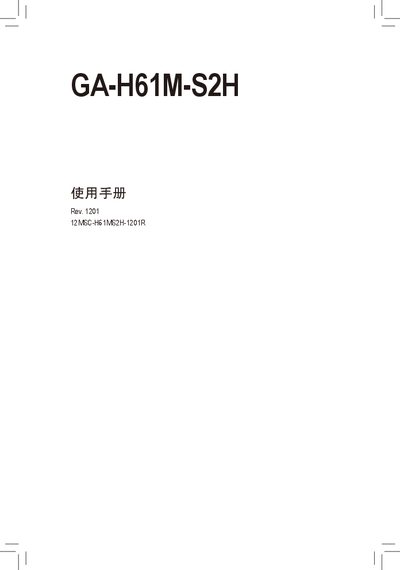

GA-H61M-S2H User Manual is the official document released by Gigabyte Technology. It introduces the hardware installation, BIOS configuration settings, driver installation, etc. of this motherboard.
This manual guides users through the hardware installation of the GA-H61M-S2H motherboard, including safety precautions, connector and jumper setup, and driver installation. It also explains how to configure BIOS settings such as memory timing, power management, and integrated peripherals.
Additional sections cover the product specifications, supported CPUs and memory types, video and audio outputs, and the warranty and service information for Gigabyte products sold in China. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Chipset | Intel H61 |
| Memory Slots | 2 DDR3 DIMM, up to 16 GB |
| Supported Memory Types | DDR3 1333/1066/800 MHz, non‑ECC |
| SATA Ports | 4 × SATA 3 Gb/s |
| USB Ports | Up to 8 × USB 2.0/1.1 |
It uses an LGA1155 socket for compatible Intel processors.
The board supports up to eight USB 2.0/1.1 ports.
Gigabyte offers a three‑year nationwide warranty for its motherboards.
