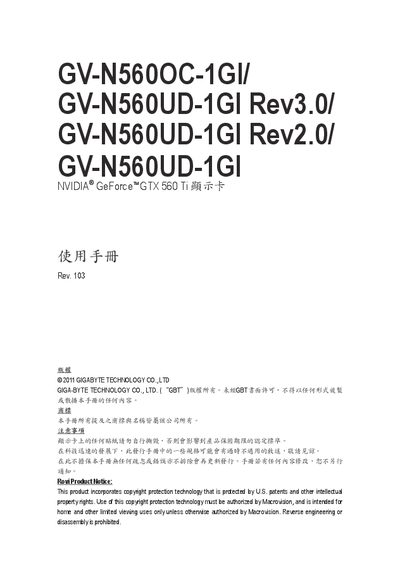

GV-N560OC-1GI/ GV-N560UD-1GI Rev3.0/ GV-N560UD-1GI Rev2.0/ GV-N560UD-1GI NVIDIA ® GeForce TM GTX 560 Ti Graphics Card User Manual, introduces the main features, system requirements, hardware installation, driver installation, troubleshooting and other contents.
This manual covers the main features of the GV-N560UD-1GI graphics card, including support for PCI Express 2.0, 1GB GDDR5 memory, DirectX 11, SLI and multiple video outputs. It also lists system requirements such as a 550 W power supply and compatible Windows operating systems.
Detailed sections guide users through hardware installation, connecting the required 6‑pin and 8‑pin power connectors, installing drivers, configuring display settings, accessing the NVIDIA Control Panel, and troubleshooting common issues. An appendix provides additional reference information. This manual is written in Chinese.
| PCI Express version | 2.0 |
|---|---|
| DirectX support | 11 |
| SLI support | Yes |
| Video outputs | 2 × DualLink DVI‑I, 1 × mini HDMI, HDMI |
| HDCP support | Yes |
| Recommended power supply | ≥ 550 W (12 V, 42 A) |
| Supported operating systems | Windows 7, Windows Vista, Windows XP |
Both a 6‑pin and an 8‑pin PCI Express auxiliary power connector must be connected to the card.
The card works with Windows 7, Windows Vista, and Windows XP.
Insert the card into a PCI Express x16 slot, secure it with a screw, and connect the required 6‑pin (or 6‑pin + 8‑pin for Rev 3.0) power connectors before powering on the system.
Two identical GV‑N560UD‑1GI cards, a compatible motherboard with two PCIe x16 slots that support SLI, and an SLI bridge are required.
