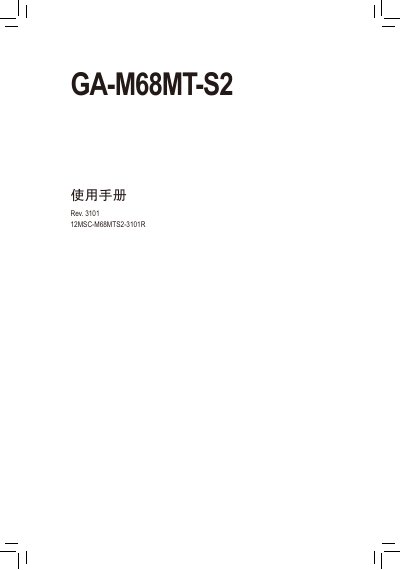

GA-M68MT-S2 is a motherboard product launched by Gigabyte in 2011. It uses the Socket AM3+ interface and supports the NVIDIA® GeForce 7025/nForce 630a chipset. It provides multiple slots and interfaces for installing hardware devices such as central processors, memory modules, and adapter cards. This manual provides detailed information on hardware installation, BIOS program settings, and driver installation.
This manual covers everything needed to install and configure the Gigabyte GA-M68MT‑S2 motherboard. It includes hardware installation instructions, safety precautions, and detailed diagrams of the board layout and connectors.
Later sections describe BIOS setup options, driver installation, and an appendix with RAID configuration, SATA construction, and warranty information. The document is written in Chinese and includes product specifications such as CPU socket type, supported memory, and I/O ports.
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
|---|---|
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported memory speeds | DDR3 1600/1333/1066/800 MHz |
| Audio codec | Realtek ALC887 |
| LAN controller | Realtek RTL8211CL 10/100/1000 Mbit |
| SATA ports | 4 SATA 3 Gb/s ports (RAID 0/1/5/10, JBOD) |
| RAID support | RAID 0, RAID 1, RAID 5, RAID 10, JBOD |
| USB ports | Up to 10 USB 2.0/1.1 ports |
| Form factor | Micro ATX (24.4 cm × 20.5 cm) |
| Power connectors | 24‑pin ATX main, 4‑pin ATX12V |
The motherboard provides four SATA 3 Gb/s ports.
Yes, it supports RAID 0, RAID 1, RAID 5, RAID 10 and JBOD.
Up to ten USB 2.0/1.1 ports are supported.
