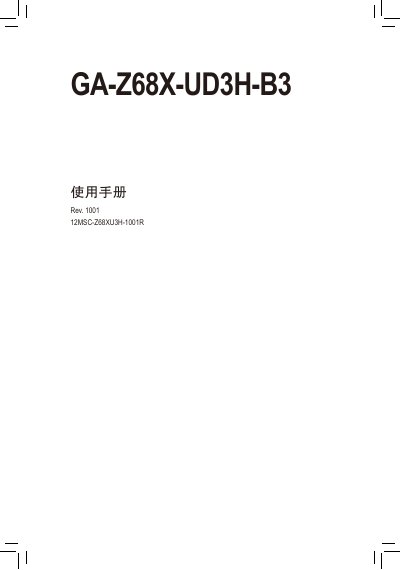

GA-Z68X-UD3H-B3 user manual, introduces the hardware installation, BIOS program setup and driver installation of the motherboard
This manual explains how to install the GA-Z68X-UD3H-B3 motherboard, including CPU, memory, storage, and expansion cards, and provides detailed BIOS configuration instructions. It also covers safety precautions, hardware connection diagrams, and unique features such as CrossFireX/SLI support.
The document lists the technical specifications of the board, describes the supported processors, memory types, audio and network interfaces, and provides troubleshooting tips and warranty information for Gigabyte customers. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Chipset | Intel Z68 |
| Memory Slots | 4 DDR3 DIMM slots, up to 32 GB |
| Supported DDR3 Speeds | 2133/1866/1600/1333/1066 MHz |
| Audio Codec | Realtek ALC889 |
| Network Controller | Realtek RTL8111E 10/100/1000 Mbit |
| PCI Express x16 Slots | 1 slot @ x16, 1 slot @ x8 |
| PCI Express x1 Slots | 3 slots |
| PCI Slots | 2 slots |
| SATA Ports | 2 × 6 Gb/s, 3 × 3 Gb/s, 1 × eSATA 3 Gb/s |
It has four DDR3 DIMM slots that support up to 32 GB of memory.
The board supports processors with an LGA1155 socket.
The motherboard uses a Realtek ALC889 audio codec.
It includes a Realtek RTL8111E controller offering 10/100/1000 Mbit Ethernet.
