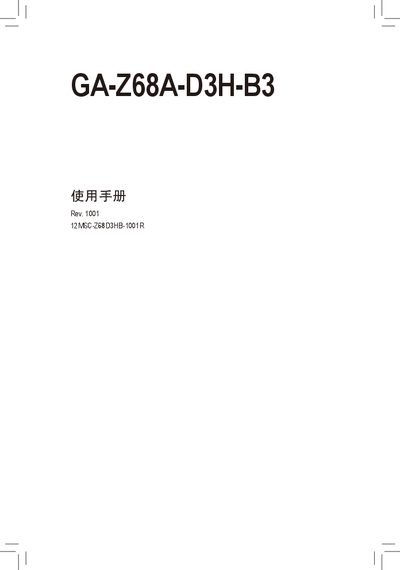

GA-Z68A-D3H-B3 User Manual, introduces the hardware installation, BIOS settings and driver installation of the motherboard
This manual guides users through hardware installation, BIOS configuration, driver setup, and the unique features of the Gigabyte GA‑Z68A‑D3H‑B3 motherboard. It includes step‑by‑step procedures for installing the CPU, memory, expansion cards, and connecting peripherals, as well as detailed BIOS menus such as Intelligent Tweaker, Power Management, and Integrated Peripherals.
The document also lists the accessories supplied with the board, offers troubleshooting tips, and provides contact information for global technical support. Links to Gigabyte’s support sites for firmware updates, driver downloads, and additional utilities are included. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Memory Type | DDR3 2133/1866/1600/1333/1066 MHz |
| USB Ports | 2 × USB 3.0, 2 × USB 2.0 |
| SATA Interface | SATA 3 (6 Gb/s) |
| Audio Output | SPDIF |
Enter the BIOS and select Q‑Flash to perform a quick BIOS refresh.
The board uses an LGA1155 socket for Intel processors.
