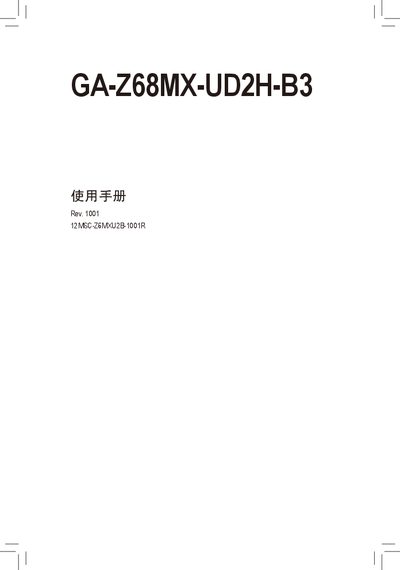

This is a user manual for GA-Z68MX-UD2H-B3 motherboard, which introduces the hardware installation, BIOS configuration settings and driver installation
This manual explains how to install the GA‑Z68MX‑UD2H‑B3 motherboard, including CPU and cooler mounting, memory module placement, expansion card installation, and connecting front‑panel connectors. Detailed diagrams of the board layout and connector pin‑outs are provided to help users correctly route power and data cables.
It also covers BIOS setup options, driver installation procedures, and a range of utility programs such as Q‑Flash, EasyTune, and Xpress Recovery. The final sections list the accessories shipped with the board, give contact information for global technical support, and provide troubleshooting tips for common issues. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Supported Memory | DDR3 1066‑2133 MHz (dual‑channel) |
| SATA Ports | 2 × SATA 3 Gb/s, 2 × SATA 6 Gb/s |
