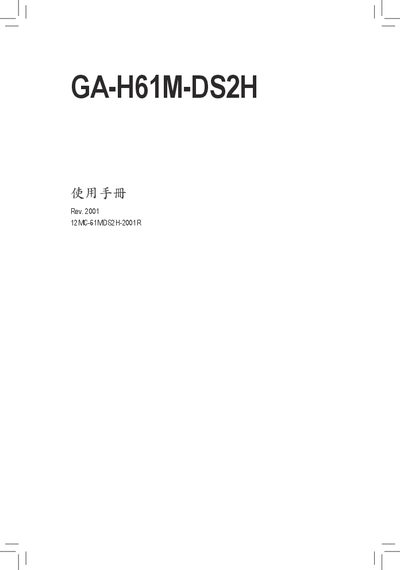

This is the user manual for the Gigabyte GA-H61M-DS2H motherboard, which introduces the hardware installation, BIOS configuration settings and driver installation for the motherboard.
This manual covers the hardware installation process for the GA-H61M-DS2H motherboard, including safety precautions, handling of components, and step‑by‑step instructions for mounting the CPU, memory modules, and expansion cards. It also explains BIOS configuration, power management settings, and peripheral connections.
The document lists the technical specifications such as supported CPUs, memory types, expansion slots, USB and SATA ports, as well as compliance declarations and warranty terms for Gigabyte products in Taiwan. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Supported CPUs | Intel Core i7/i5/i3, Pentium, Celeron |
| Chipset | Intel H61 |
| Memory Slots | 2 x 1.5 V DDR3 DIMM, up to 16 GB |
| Memory Type | DDR3 1333/1066/800 MHz, non‑ECC |
| PCI Express Slots | 1 x PCIe x16, 3 x PCIe x1 |
| SATA Ports | 4 x SATA 3 Gb/s |
| USB Ports | 10 x USB 2.0 |
| LAN | Realtek/Atheros GbE |
| Audio | Realtek/VIA HD Audio |
It uses an LGA1155 socket.
The board supports up to 10 USB 2.0 ports.
It can accommodate up to 16 GB of DDR3 memory.
Gigabyte provides a standard warranty for products purchased in Taiwan, as described in the Taiwan‑region warranty terms.
