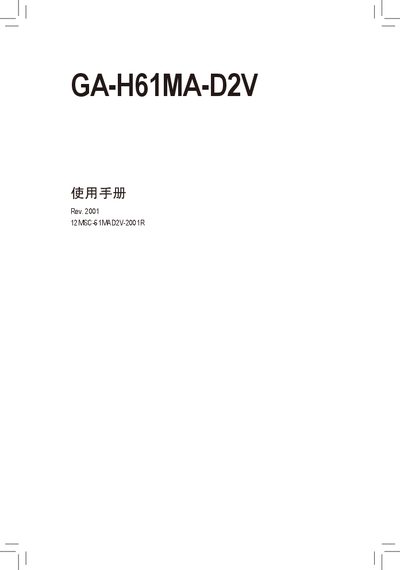

Gigabyte GA-H61MA-D2V User Manual

GA-H61MA-D2V motherboard user manual, introduces the motherboard hardware installation and BIOS program settings, including CPU, memory, adapter card, rear device socket, socket and jumper installation

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 40
File format: PDF
File size: 14.5 MB
Published: 13 March, 2012
Updated: 30 September, 2023
Model: GA-H61MA-D2V
MD5 checksum: 60E953498A5EC1F3E18DAE3086961787
PDF: Gigabyte GA-H61MA-D2V User Manual PDF

About this manual

本使用手册提供 GA-H61MA-D2V 主板的硬件安装步骤、注意事项以及各接口、插槽的功能说明。包括 BIOS 程序设置、驱动程序安装以及配件清单，帮助用户完成从装箱到系统调试的全部过程。\n\n手册还包含产品规格表、售后服务与质量保证卡信息，便于用户了解主板的技术参数、兼容的处理器类型以及保修政策。 This manual is written in Chinese.

What's inside

硬件安装
安装前的注意事项
产品规格
BIOS 程序设置
驱动程序安装
主板配置图
接口与插槽说明
售后服务及质量保证卡

Specifications

CPU socket	LGA1155
Supported processors	Intel Core i7/i5/i3, Pentium, Celeron
Memory slots	2 DDR3 DIMM slots, up to 16 GB

Frequently asked questions

What CPU socket does the GA-H61MA-D2V use?

It uses an LGA1155 socket for Intel processors.

How many DDR3 memory slots are available and what is the maximum memory?

The board has two DDR3 DIMM slots supporting up to 16 GB of RAM.

How many USB 3.0 ports are on the rear panel?

There are two USB 3.0/2.0 ports on the rear panel.

What is the warranty period for this motherboard?

Gigabyte provides a three‑year warranty for this motherboard in mainland China.
