GA-H61MA-D3V is a motherboard product released by Gigabyte Technology Co., Ltd. in 2011. This motherboard features LGA1155 CPU socket, ATX form factor, Intel H61 chipset, etc.

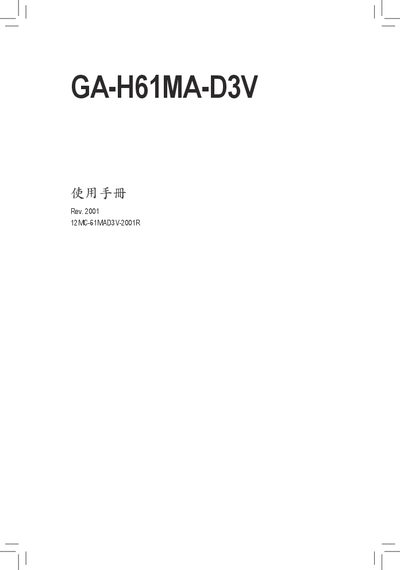

This manual guides users through the installation of the GA-H61MA-D3V motherboard, safety precautions, and handling of components. It includes step‑by‑step hardware installation, BIOS configuration, and power‑management settings.
The document also lists detailed technical specifications such as supported CPUs, memory types, expansion slots, storage interfaces, audio and network features, as well as warranty and regulatory compliance information. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Memory slots | 2 DDR3 DIMM, up to 16 GB |
| Memory speed | DDR3 1333/1066/800 MHz |
| SATA2 ports | 4 × 3 Gb/s |
| SATA3 ports | 2 × 6 Gb/s |
| USB 2.0 ports | Up to 8 |
| USB 3.0 ports | Up to 2 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 3 |
| Audio codec | Realtek/VIA HD Audio, 5.1 channels |
It supports the LGA1155 socket for Intel processors.
The board has two DDR3 DIMM slots that can hold up to 16 GB of memory, supporting DDR3 1333/1066/800 MHz non‑ECC modules.
It provides four SATA2 ports (3 Gb/s) and two SATA3 ports (6 Gb/s).
The board includes up to eight USB 2.0 ports and two USB 3.0 ports.
