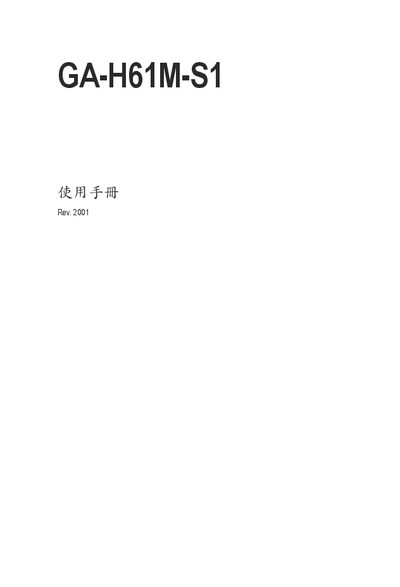

This document is the user manual for the GA-H61M-S1 motherboard, which describes the motherboard's configuration, functional block diagram, and hardware installation steps. It also includes information on BIOS configuration and driver installation.
This manual explains the safety precautions and preparation needed before installing the GA-H61M-S1 motherboard, including anti‑static measures, power‑off requirements, and handling instructions. It also details the physical layout of the board, connector locations, and the steps for mounting the CPU, memory modules, and other components.
Further sections cover BIOS setup options, system configuration, and a complete list of technical specifications such as supported processors, memory types, expansion slots, storage interfaces, and integrated audio and networking chips. Warranty terms and contact information for Gigabyte support are also included. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Chipset | Intel H61 |
| Memory Slots | 2 DDR3 DIMM slots, up to 16 GB total |
| SATA Ports | 4 × 3 Gb/s SATA |
| Audio Codec | Realtek ALC887, High Definition Audio |
It uses an LGA1155 socket, supporting Intel Core i7, i5, i3, Pentium and Celeron processors.
The board has two DDR3 DIMM slots that together support up to 16 GB of memory.
