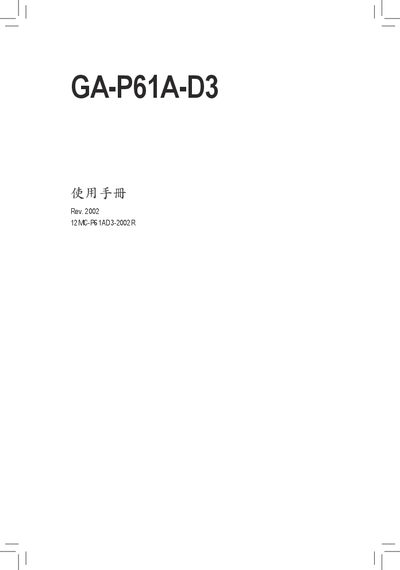

GA-P61A-D3 motherboard user manual, introduces the product's hardware installation, BIOS configuration settings, driver installation and other content
This manual covers the hardware installation procedures for the GA-P61A-D3 motherboard, including safety precautions, handling guidelines, and step‑by‑step instructions for mounting the board, CPU, memory modules, and peripheral devices. It also explains BIOS setup, power management options, and system configuration.
Technical specifications are listed, detailing supported CPUs, memory types, expansion slots, storage interfaces, audio and networking features, as well as regulatory compliance and warranty information for the product. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Memory Type | DDR3 1333/1066/800 MHz, non‑ECC, up to 16 GB |
| Maximum Memory Capacity | 16 GB |
| USB Ports | Up to 6 × USB 2.0 and 2 × USB 3.0 |
| Expansion Slots | 1 × PCI Express x16, 2 × PCI Express x1, 3 × PCI |
| Audio | Realtek/VIA HD Audio, 5.1 channel, S/PDIF output |
| Power Connectors | 24‑pin ATX, 4‑pin ATX12V |
It uses an LGA1155 socket for Intel processors.
The board supports up to 16 GB of DDR3 memory, non‑ECC, at 1333/1066/800 MHz.
There are four SATA 3 Gb/s ports and two SATA 6 Gb/s ports, with RAID 0 and RAID 1 capability.
The board includes one PCI Express x16 slot, two PCI Express x1 slots, and three PCI slots.
