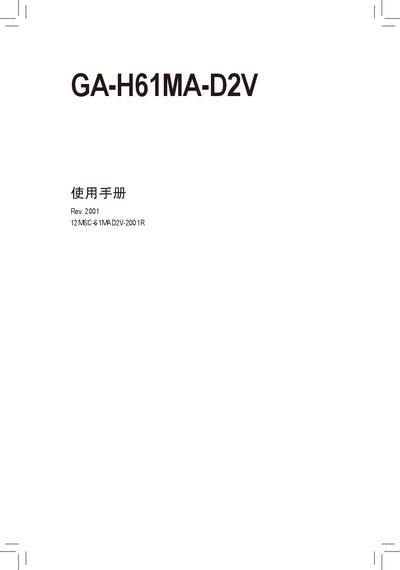

GA-H61MA-D2V is a motherboard released by Gigabyte Technology Co., Ltd in 2011. The motherboard features various functional blocks including CPU socket, memory module slots, interface card slots, etc. The user manual provides guidance on hardware installation and BIOS configuration.
This manual covers hardware installation steps, BIOS configuration, driver installation, and safety precautions for the GA‑H61MA‑D2V motherboard. It includes diagrams of the board layout, connector descriptions, and a full list of technical specifications.
Additional sections provide warranty information, FCC and CE compliance declarations, and contact details for Gigabyte technical support. The document is primarily in Chinese with some English regulatory text. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Chipset | Intel H61 |
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Memory type | DDR3 1333/1066/800 MHz, non‑ECC |
| SATA ports | 4 × SATA 3 Gb/s |
| LAN | Realtek Atheros GbE LAN |
| Audio codec | Realtek VIA HD Audio |
| Power connectors | 24‑pin ATX main, 4‑pin ATX 12V |
It supports LGA1155 socket processors.
The board has two DDR3 DIMM slots and can support up to 16 GB of RAM.
