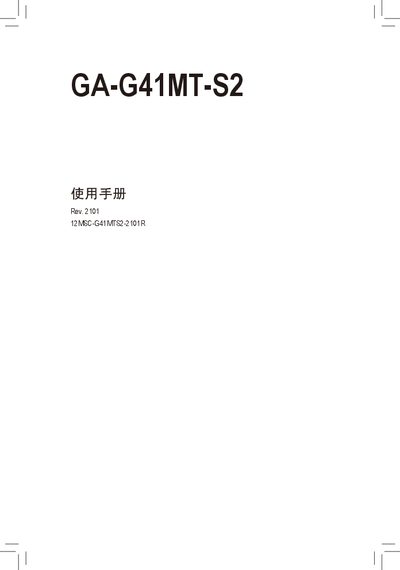

GA-G41MT-S2 motherboard user manual, introduces information on motherboard installation, BIOS settings and driver installation.
This manual covers the hardware installation of the GA‑G41MT‑S2 motherboard, including safety precautions, connector descriptions, and component placement. It also explains how to install the CPU, memory modules, and expansion cards, and provides guidance on handling static electricity and proper grounding.
The document details BIOS setup options, driver installation, audio and network configuration, and lists the technical specifications such as supported CPUs, memory capacity, chipset, and I/O ports. The final sections describe warranty terms, service contacts, and how to obtain technical support. This manual is written in Chinese.
| CPU Socket | LGA775, supports Intel Core2, Pentium, Celeron |
|---|---|
| Memory | 2 DDR3 DIMM slots, up to 8 GB, DDR3‑1333, dual‑channel |
| LAN | Integrated Atheros/Realtek Gigabit Ethernet |
| SATA Ports | 4 × SATA 3 Gb/s connectors |
The board supports LGA775 processors, including Intel Core2 Extreme, Core2 Quad, Core2 Duo, Pentium, and Celeron CPUs.
The BIOS includes MB Intelligent Tweaker, Standard CMOS, Advanced Chipset, Integrated Peripherals, Power Management, and PC Health status among other settings.
