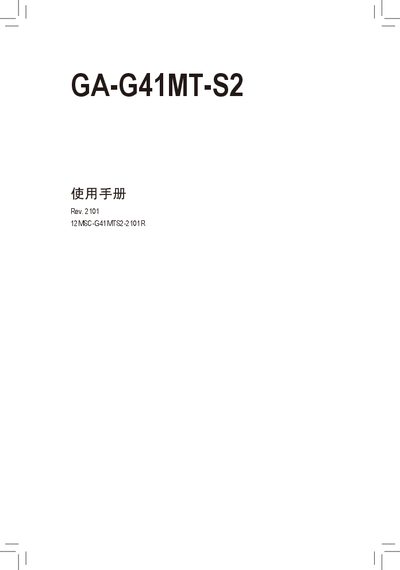

GA-G41MT-S2 is a motherboard product from Gigabyte Technology Co., Ltd. This document provides information on hardware installation and BIOS program settings of the motherboard.
This manual covers the hardware installation process for the GA‑G41MT‑S2 motherboard, including precautions, CPU and memory installation, expansion slot usage, and connector wiring. It also explains BIOS setup options such as loading default settings and configuring power management and integrated peripherals.
In addition to the technical instructions, the document lists the motherboard's specifications, supported processors, memory types, storage interfaces, networking and audio features, as well as warranty and after‑sales service information for Gigabyte customers in mainland China. This manual is written in Chinese.
| CPU Socket | LGA775 |
|---|---|
| Supported CPUs | Intel Core2 Extreme, Core2 Quad, Core2 Duo, Pentium, Celeron |
| Chipset | Intel G41 (northbridge) / Intel ICH7 (southbridge) |
| Memory Slots | 2 DDR3 DIMM slots, up to 8 GB, DDR3 1333/1066/800 MHz, dual‑channel |
| SATA Ports | 4 × SATA 3 Gb/s |
| LAN | Integrated Atheros/Realtek GbE LAN |
| Audio | Realtek HD Audio, supports 2.1/5.1 channels |
| Power Connectors | 24‑pin ATX main, 4‑pin ATX12V auxiliary |
It uses an LGA775 socket for Intel processors.
The board has two DDR3 DIMM slots that can support up to 8 GB of RAM.
Use the ‘Load Fail‑Safe Defaults’ or ‘Load Optimized Defaults’ options in the BIOS setup.
Gigabyte offers a three‑year warranty for the GA‑G41MT‑S2 motherboard purchased in mainland China.
