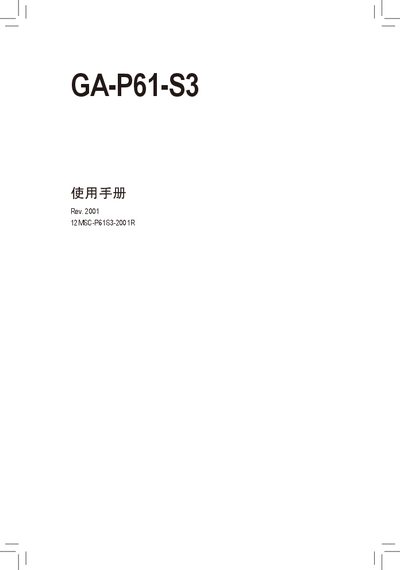

Gigabyte GA-P61-S3 Motherboard User Manual

This manual is a user guide for the GA-P61-S3 motherboard, including hardware installation, BIOS configuration, driver installation, and more.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 40
File format: PDF
File size: 12.9 MB
Published: 13 March, 2012
Updated: 29 September, 2023
Model: GA-P61-S3
MD5 checksum: 0551D004E60FF1389D33516EE17DB4E3
PDF: Gigabyte GA-P61-S3 Motherboard User Manual PDF

About this manual

This manual guides users through hardware installation, BIOS configuration, and driver setup for the Gigabyte GA-P61-S3 motherboard. It includes safety precautions, detailed connector descriptions, and troubleshooting tips.

The document also lists the technical specifications of the board, warranty information, and contact details for Gigabyte technical support. This manual is written in Chinese.

What's inside

Hardware Installation
BIOS Setup
Driver Installation
Product Specifications
Motherboard Layout
Warranty and Service
Technical Support

Specifications

CPU Socket	LGA1155
Memory Slots	2 DDR3 DIMM slots, up to 16 GB
Memory Type	DDR3 1333/1066/800 MHz, non‑ECC, dual‑channel
SATA Ports	4 × SATA 3 Gb/s
USB Ports	8 × USB 2.0 (4 rear, 4 via internal header)
Power Connectors	24‑pin ATX main, 4‑pin ATX12V, 2‑pin CPU fan, 2‑pin system fan

Frequently asked questions

What CPU socket does the GA‑P61‑S3 motherboard use?

It uses an LGA1155 socket for Intel processors.

How many memory slots are available and what is the maximum supported RAM?

The board has two DDR3 DIMM slots that together support up to 16 GB of RAM.

How many USB ports are provided on the GA‑P61‑S3?

The motherboard supports up to eight USB 2.0 ports.

Download PDF (12.9 MB)
