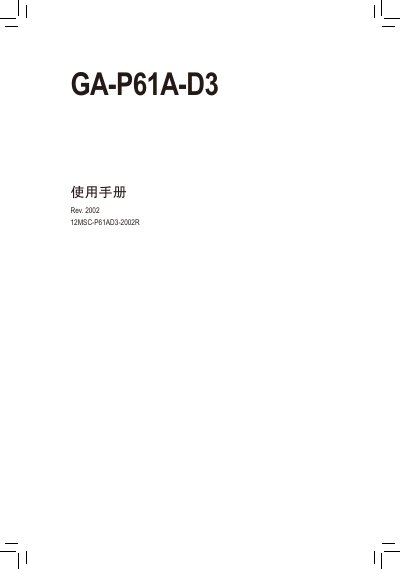

GA-P61A-D3 motherboard user manual, introduces the hardware installation, BIOS program settings, driver installation and other contents.
This manual covers the complete setup process for the GA-P61A-D3 motherboard, including safety precautions, hardware installation steps, BIOS configuration, and driver installation. It also contains detailed diagrams of the board layout and connector descriptions.
The document lists the technical specifications of the board, such as supported CPUs, memory types, expansion slots, and I/O interfaces, and provides guidance on proper handling to avoid static damage and ensure reliable operation. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Chipset | Intel H61 |
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported memory speed | DDR3 1333/1066/800 MHz |
| Audio codec | Realtek/VIA HD |
| Ethernet controller | Realtek/Atheros GbE (10/100/1000 Mbit) |
| PCIe x16 slot | 1 PCIe x16 slot |
| PCIe x1 slots | 2 PCIe x1 slots |
| SATA ports | 4 SATA 3Gb/s ports, 2 SATA 6Gb/s ports |
| USB ports | 6 USB 2.0/1.1 ports, 2 USB 3.0/2.0 ports |
It has two DDR3 DIMM slots that support up to 16 GB of memory.
The board uses an LGA1155 socket for Intel processors.
There are two USB 3.0/2.0 ports on the rear panel.
