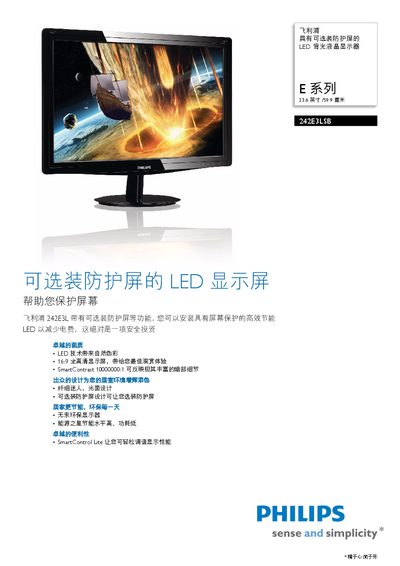

The Philips 242E3LSB is a 23.6-inch Full HD display with LED backlighting and an optional protective screen. It features SmartContrast 10000000:1 contrast for incredibly rich dark detail. It also has a slim, elegant, and glossy design and supports the Energy Star energy efficiency standard.
This manual describes the features of the Philips 242E3LSB 23.6‑inch LED‑backlit display, including SmartContrast technology, Energy Star 5.0 efficiency, and SmartControl Lite for easy configuration. Safety and installation instructions are provided, along with guidance for mounting and VESA compatibility.
Technical specifications, power consumption, environmental ratings, and compliance information are listed, along with connectivity options such as DVI‑D and VGA. The document also covers operating conditions, dimensions, weight, and warranty details. This manual is written in Chinese.
| LCD panel type | TFT‑LCD |
|---|---|
| Backlight type | W‑LED |
| Screen size | 23.6 inches |
| Resolution | 1920 × 1080 |
| Contrast ratio | 1,000:1 |
| SmartContrast | 10,000,000:1 |
| Brightness | 250 cd/m² |
| Pixel pitch | 0.272 mm × 0.272 mm |
| Viewing angles (H/V) | 170° / 160° |
| Color gamut | 16.7 million colors |
| Response time | 30 – 83 ms |
| Active power consumption | 15.6 W |
| Standby power consumption | 0.1 W |
| Energy Star rating | 5.0 |
| Dimensions (with stand) | 583 × 443 × 238 mm |
| Weight (with stand) | 3.87 kg |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -20 °C to 60 °C |
| Relative humidity | 20 % – 80 % |
| MTBF | 30,000 hours |
| Connectivity | DVI‑D (HDCP) and VGA |
Yes, it is certified to Energy Star 5.0.
Brightness is 250 cd/m² and the native contrast ratio is 1,000:1, with SmartContrast up to 10,000,000:1.
The display supports DVI‑D (digital with HDCP) and VGA (analog) inputs.
