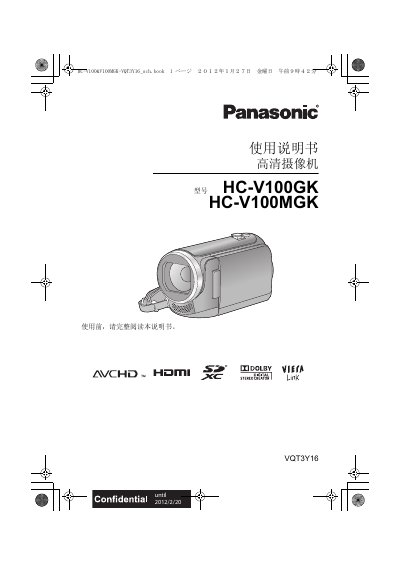

This is a user manual for the HD camcorder HC-V100GK HC-V100MGK, which introduces the product features, usage methods and precautions.
This manual provides safety precautions, accessory information, and step‑by‑step instructions for operating the Panasonic HC‑V100GK and HC‑V100MGK high‑definition camcorders. It covers battery installation, charging, recording modes, menu navigation, and playback functions.
Technical details such as supported memory cards, video/audio formats, sensor specifications, lens features, dimensions, and power requirements are listed, along with troubleshooting tips and warranty information. This manual is written in Chinese.
| Power supply (adapter) | DC 5.0 V |
|---|---|
| Power supply (battery) | DC 3.6 V |
| Video recording format | AVCHD, iFrame (MPEG‑4 AVC) |
| Audio compression (AVCHD) | Dolby Digital 2‑channel |
| Video bitrate (HA mode) | Average 17 Mbps VBR |
| Lens optical zoom | 34× optical zoom, F1.8‑F4.0 |
| Optical image stabilization | Enabled (enhanced mode) |
| LCD monitor size | 6.7 cm (2.7") diagonal, ~230 k dots |
| Dimensions (W×H×D) | 51.5 mm × 59.5 mm × 112.5 mm |
| Weight (without battery) | ≈181 g |
| Supported memory cards | SD, SDHC, SDXC |
| Internal memory | 16 GB |
The camcorder supports SD, SDHC, and SDXC memory cards that meet the respective specifications.
Both AVCHD and iFrame (MPEG‑4 AVC) recording formats are available.
The lens provides a 34× optical zoom with an aperture range of F1.8 to F4.0.
