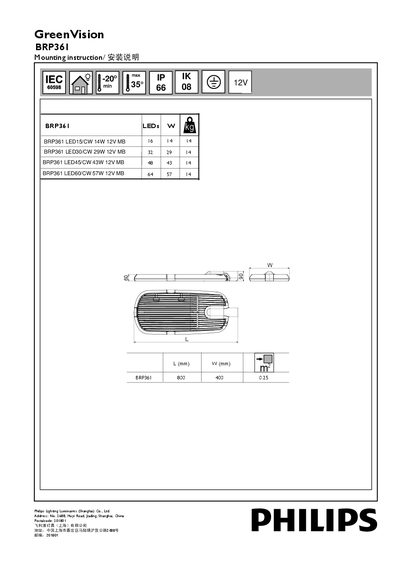

This is the installation instruction of GreenVision BRP361.
The manual provides mounting instructions for the Philips BRP361 LED luminaire, including dimensions, wiring references and part numbers for the various LED modules.
It also specifies the allowed installation angle (5‑15°) and the correct sequence for opening the mounting clips – side clips first, then the front clip. This manual is written in Chinese.
| LED15/CW Power | 14W |
|---|---|
| LED15/CW Voltage | 12V |
| LED30/CW Power | 29W |
| LED30/CW Voltage | 12V |
| LED45/CW Power | 43W |
| LED45/CW Voltage | 12V |
| LED60/CW Power | 57W |
| LED60/CW Voltage | 12V |
| Installation Angle Range | 5-15 degrees |
The installation angle should be set between 5 and 15 degrees.
First open the side clips, then the front clip.
