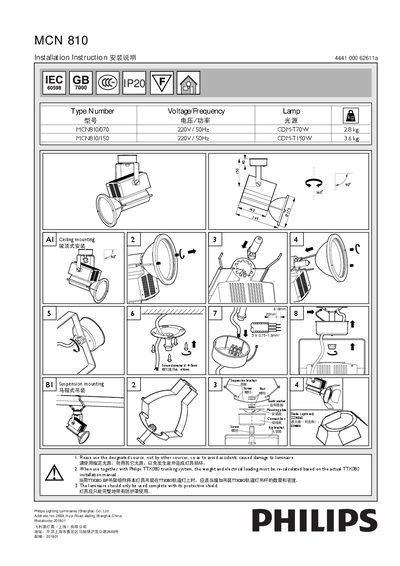

This document is a guide for the installation of Philips Lighting MCN 810. It provides instructions on the proper use of designated light sources, the importance of using the protective shield, and the different mounting options available for the luminaire.
The manual provides step‑by‑step guidance for mounting the Philips MCN 810 luminaire. Both ceiling and suspension mounting methods are described, including required screw diameter (45 mm) and thread pitch (4 mm). The document lists the two model variants MCN810/070 (2.8 kg) and MCNB810/150 (3.6 kg) with their voltage/frequency specifications (220 V / 50 Hz) and IP20 protection.
Safety notes advise using only the designated source to avoid damage, recalculating weight and electrical loading when combined with the Philips TTX080 trunking system, and always installing the protective shield. Contact information for Philips Lighting Luminaires (Shanghai) is provided for further assistance.
| Model MCN810/070 voltage/frequency | 220 V / 50 Hz |
|---|---|
| Model MCNB810/150 voltage/frequency | 220 V / 50 Hz |
| Screw diameter | 45 mm |
| Thread pitch | 4 mm |
Yes, the manual includes a ceiling mounting procedure.
A screw diameter of 45 mm is required.
Yes, the luminaire should only be used complete with its protective shield.
