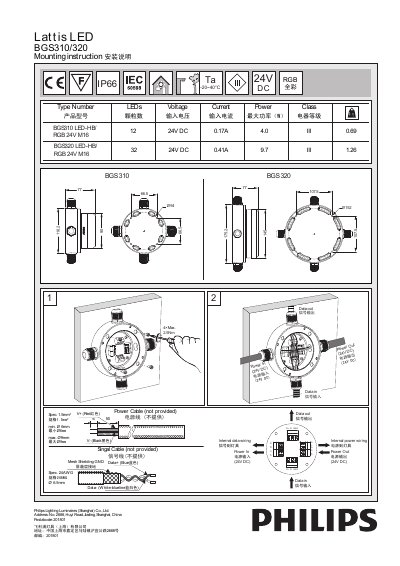

This document is an installation instruction provided by Philips Lighting Luminaires (Shanghai) Co., Ltd. It introduces the features and characteristics of the BGS310/320 model Lattis LED luminaires, including the number of LEDs, voltage class, power, and input current.
The manual provides step‑by‑step mounting instructions for the Philips Lattis BGS310 and BGS320 LED luminaires, including mechanical mounting details and required tools. It also describes the wiring of power and signal cables, specifying connector colors and cable specifications.
Electrical specifications are listed, such as 24 V DC input voltage, maximum power (77 W for BGS310, 107.5 W for BGS320), and input current (0.17 A / 0.41 A). The document explains DMX512 and auxiliary data connections, maximum cable length of 30 m with 6‑9 mm diameter cable, and the maximum number of luminaires that can be daisy‑chained per power supply. This manual is written in Chinese.
| Output voltage | 24 V DC |
|---|---|
| Maximum cable length | 30 m |
| Cable diameter | 6‑9 mm |
The manual allows up to 30 meters of cabling distance when using 6‑9 mm diameter cable.
Data+ is blue, Data‑ is white‑blue, V+ is red, and V‑ is black.
