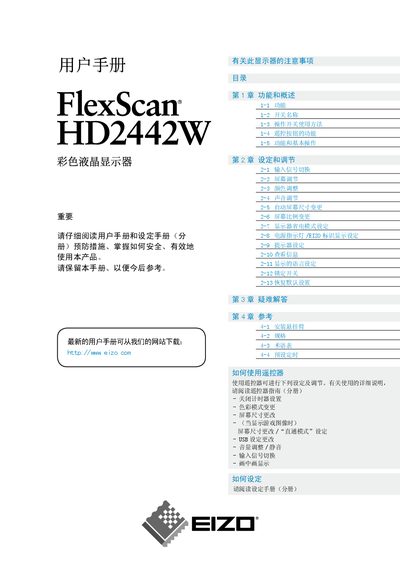

This document is a user manual and setting manual produced by EIZO NANAO CORPORATION. It mainly introduces how to use the product safely and effectively, as well as the use and setting adjustment functions of the remote control. It also includes notes, troubleshooting, and reference information for the monitor.
This manual provides an overview of the FlexScan HD2442W’s features, including its 24.1‑inch TFT LCD panel, 1920 × 1200 resolution, DVI‑D, HDMI and USB connectivity, and ergonomic adjustments such as height‑adjustable stand and remote control functions. It also describes how to use the ScreenManager menu, picture‑in‑picture mode, and the built‑in audio system.
The guide covers setup procedures, detailed adjustment options for picture, color, and sound, power‑saving modes, and a comprehensive troubleshooting section that helps resolve common issues like no image, incorrect colors, or audio problems. Safety and cleaning instructions are included to ensure long‑term reliability. This manual is written in Chinese.
| Screen size | 24.1 inches (610 mm) |
|---|---|
| Resolution | 1920 × 1200 |
| Panel type | TFT LCD with anti‑glare coating |
| Viewing angle | 178° vertical / 178° horizontal |
| Pixel pitch | 0.270 mm |
| Maximum power consumption (with USB devices) | 110 W |
| Energy‑saving mode power consumption | 7 W or less (no input signal) |
| Audio output | 3.5 mm stereo mini‑jack (1×) |
Check that the power indicator is lit, verify the power cable connection, turn the monitor on, select the correct input source with the remote or the front switch, and ensure the connected AV device is powered on.
Open the <显示器设定> menu, select <色彩空间>, and change the color space setting, usually choosing “Auto”.
