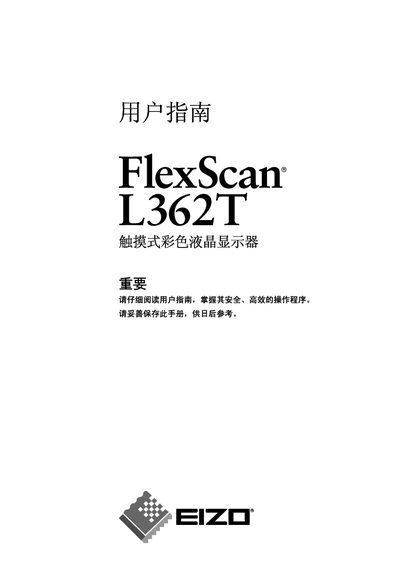

This is a user manual for LCD display, introduce the characteristics and usage of the product
This manual covers safety precautions, cable connections, screen manager usage, adjustment settings, and installation of the optional arm‑mount base. It also includes troubleshooting tips, cleaning guidelines, and a full list of technical specifications.
The document is organized with a table of contents that guides users through each step, from unpacking the monitor and connecting power and video cables to configuring touch panel functions and managing power‑saving modes. This manual is written in Chinese.
| Screen size | 38 cm (15.0 in) |
|---|---|
| Resolution | 1024 × 768 (0.8 MP) |
| Viewing angle | 170° horizontal, 170° vertical |
| Response time | 55 ms |
| Maximum power consumption | 40 W (with speakers) |
| Standby power consumption | < 3 W |
| Input connectors | D‑Sub mini 15‑pin, DVI‑D |
| Touch panel detection method | Analog capacitive |
Immediately disconnect all power cables and contact the dealer.
Use the screen manager or adjustment buttons to set the brightness appropriate for the environment.
