This document introduces the features and characteristics of a monitor, including its functions, overview, settings and adjustments, and cable connections. The monitor has features such as an adjustable stand and ENERGY STAR compliance.

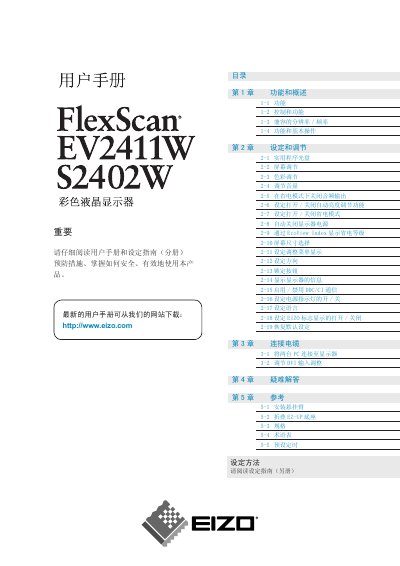

This manual provides instructions for installing, connecting, and operating the EIZO FlexScan EV2411W and S2402W color LCD monitors. It explains the monitor’s functions, power‑saving features such as Auto EcoView, and how to adjust brightness, contrast, color temperature, and other display settings.
Safety precautions, cleaning guidelines, and troubleshooting tips are included, along with detailed specifications for resolution, power consumption, and pixel performance. The document also describes how to mount the monitor on a swivel arm and how to use the built‑in speakers and headphone jack. This manual is written in Chinese.
| Maximum Power Consumption (EV2411W) | 43 W |
|---|---|
| Standard Power Consumption (EV2411W) | 19 W |
| Maximum Power Consumption (S2402W) | 54 W |
| Standard Power Consumption (S2402W) | 27 W |
| Resolution | WUXGA (1920 × 1200) |
| Effective Pixel Percentage | 99.9994 % or higher |
| Backlight Type | LED |
Use the Auto EcoView button on the monitor to turn the feature on or off, as described in the manual.
The EV2411W consumes up to 43 W at maximum brightness.
Yes, the monitor has two PC inputs and you can switch between them using the input‑signal button.
Use a soft cloth slightly dampened with water or a dedicated screen‑cleaning liquid, avoiding solvents.
